Whenassembled, this kit will replace the displays used on Williams System 6A, 7, or System 9 pinball machines that use the C-8363/C-8364/C-8365 display. This kit replaces all5 displays used on these machines. Note, this display cannot be mixed with theoriginal displays and must be replaced as a set.
This display kit is NOT COMPATIBLE with machines that use more than 5 displays e.g. bowler games.
This display kit is NOT COMPATIBLE with system 9 systems that use the D-10749 control board (e.g. 'Comet') without adapters for the wiring connections. See picture number 5 to ensure that your board looks similar. (Please contact us about availability ofa different kit available that is compatible with Comet and bowler machines that use the D-10749/C-8364/C-8365 display controller.)
This is a direct replacement for the original high voltage gas discharge displays and uses the existing wiring without modification. These new displays use low voltage, cool LEDs and will operate even if the high voltage power supply on your pinball machine does not work.
>>>>> This comes as a kit of parts <<<<<
>>>>> It must be assembled before it can be used <<<<<
*****This kit includesOrangeLED digits.*****
>>Inquire about availability class="p1" style="font-size: 14pt; font-family: Arial; margin: 0in 0in 0.0001pt;">
This is a kitthat requires basic solder assembly before it can be used.Everything you need to build the displays is included except for solder.Only basic "old school" through hole parts are used, no surface mount parts for easy assembly.

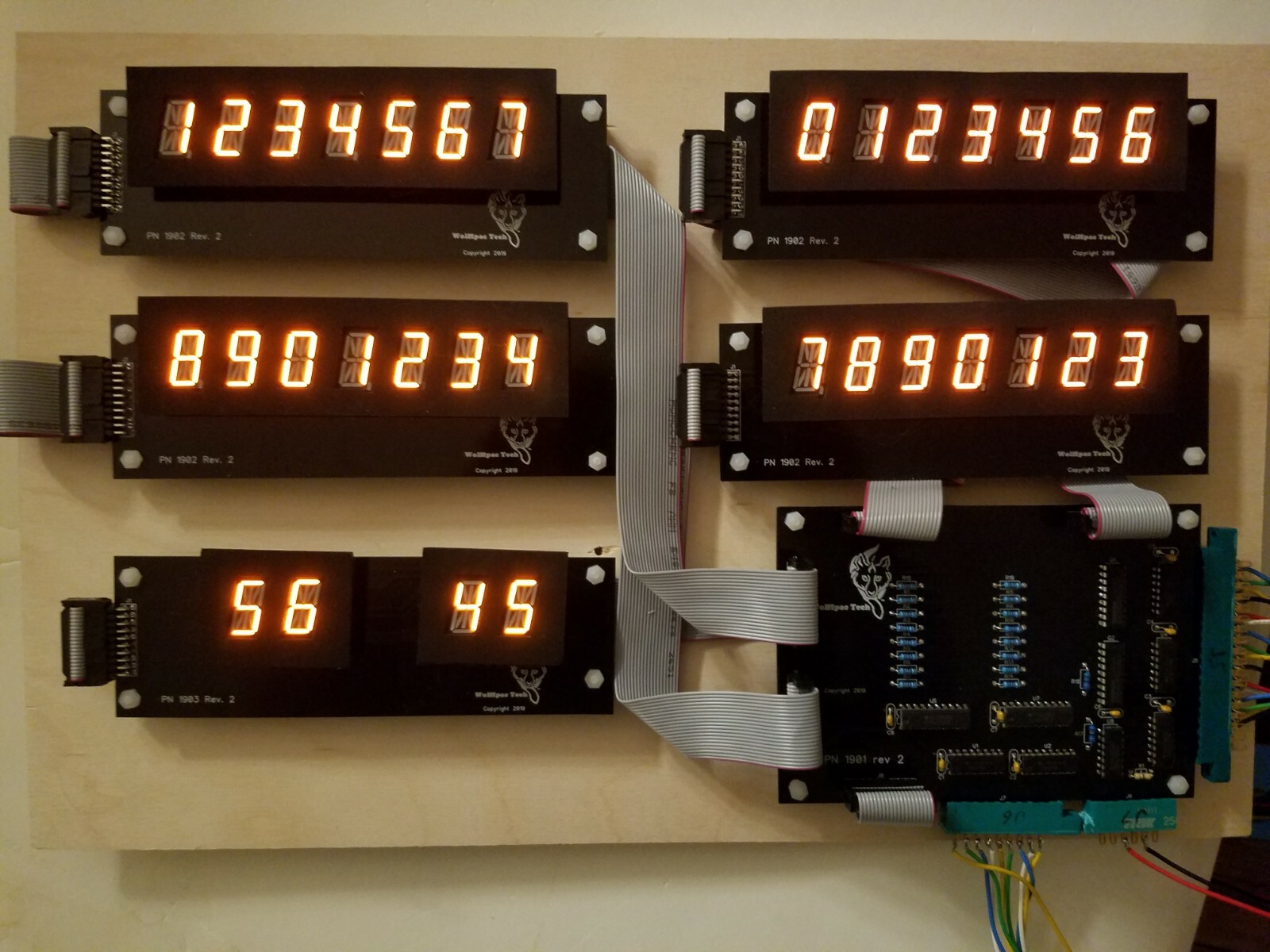

Note that the cables shown in the picture arenotincluded in this kit.
See the assembly instructions here:Link to Assembly Instructions
This is believed to be an accurate list of machines with displays compatible with this replacement. Since we areunable to test this board in every configuration, we take no responsibility for any errors. However, we do welcomeresponse as to any errors that are found so that we can update this list.
System 6A
Algar
Alien Poker
System 7
Barracora
Black Knight
Black Knight Limited Edition
Cosmic Gunfight
Defender
Firepower II
Joust
Jungle Lord
Laser Cue
Pharaoh
Solar Flare
Star Light
Time Fantasy
Varkon
Warlok
System 9 Sorcerer Space Shuttle Comet *** (Important; Most Comet machines were produced with D-10749 master board instead of the C-8363 control board. This kit IS NOT compatible with machines that have the D-10749 master board) Inquire about kits for the D-10749 controller.
