Virtual Pinball Cabinet Kit Flat Pack WPC Williams WideBody Style For Sale

7-18-26: currently have 2 full VPINS to build, will squeeze in your cabinet, max shipping date would be 10 days from purchase.
Hello Vpin enthusiasts!
I'm proud to offer full size WPC/Williams widebody cabinets.these are not shortened down/resized, its the FULLSIZE, and all OEM hardware fits exactly as it should (side rails, lockdown bar and receiver, coin door etc)
I started in this hobby over 14 years ago. Built dozens of cabinets, and even more PC's for hobby enthusiasts around the country. I've bought flatpacks in the beginning, then i had access to a shopbot and started cutting my own cabinets.Now, i bought my own ALTMILL CNC, and im cutting my own cabinets for all of you to enjoy!
I sell all sorts of vpin related things, so be sure to

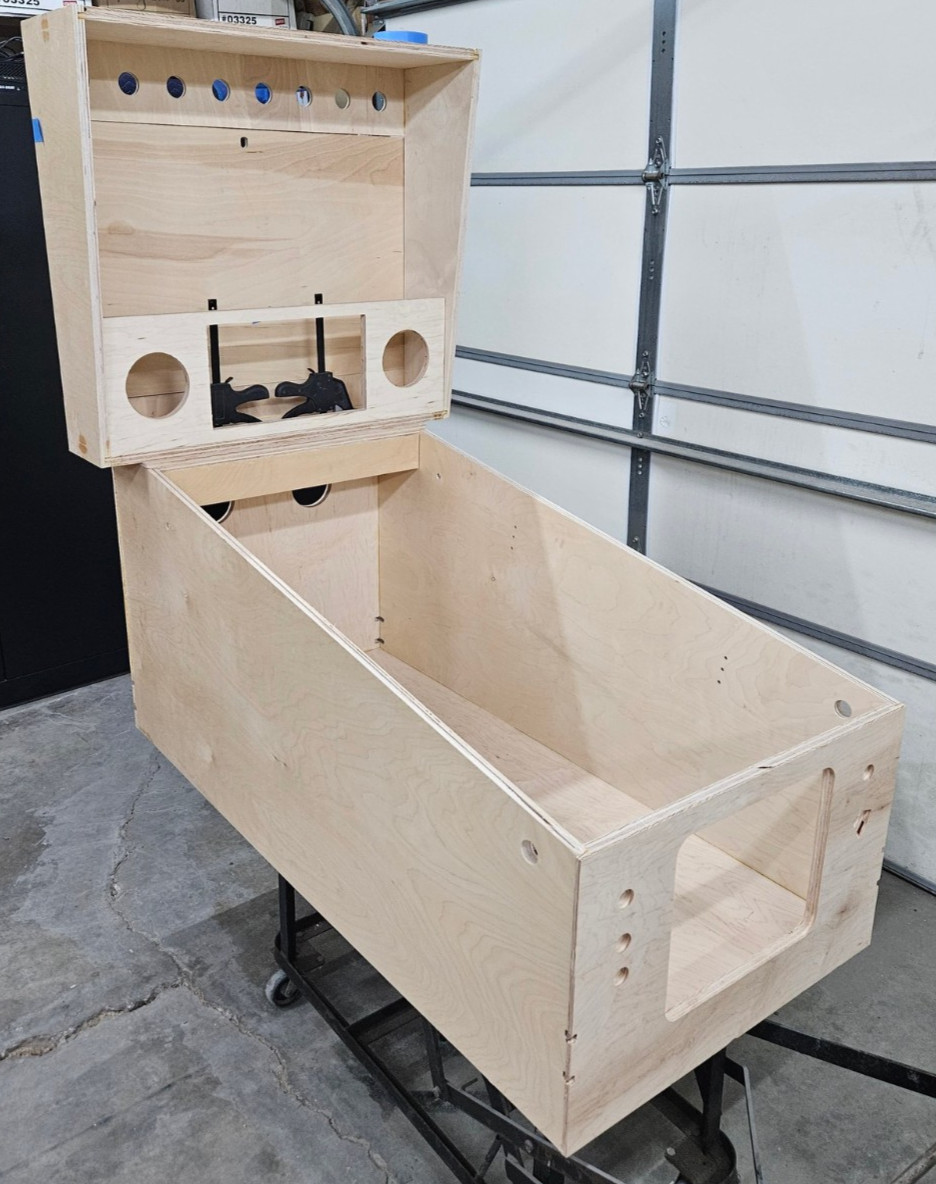

I included a assembled photo of the last standard width cabinet i did, i dont usually do std width cabs anymore, but its a option!
The backbox is slightly WIDER than standard, due to most people wanting to fit 32" screens in the backbox(you have 29.5" inside width in backbox)
NO SCREWS OR NAILS NEEDED! Goes together with just wood glue
Cabinet Materials are 3/4" cabinet grade veneered plywood, very smooth and take vinyl and paint very well.Some panels are 1/2" to reduce weight, like backbox rear access panels, and cabinet floor.WHATS INCLUDED:
** playfield mount and Backglass Monitor mount is now included in full cabinet kits!
Bottom Cabinet:

Button holes for flipper Buttons, Start, Extra Ball, Exit, Launch Button, and plunger cutout.(see photo for spacing/layout)

Front button holes are standard 1" holes for williams/stern/data east buttons

Flipper holes are 1.125, for happ arcade pushbuttons (if you need different than 1.125 on the flippers just let me know)

Pinball Coin Door Cutout, and bolt holes pre-drilled

Hole for a down firing 8" sub

1 button hole on bottom for power switch/ arcade pushbutton

Corners are CNC'd out for leg bolts to fit perfectly.

T-Slots are cut in the sides for playfield glass side rails.

Rear of cabinet has 2 holes for 120mm fans, and a power connector

Vertical panel where a led panel or lights would hang, below the rear glass channel location.

This cabinet is made to line up with the williams leg mounting brackets, williams side rails, williams cabinet hingers, and widebody williams lockdown bar.

Backbox includes

DMD Panel designed for 15.6-inch LCD DMD's and5.25inch speakers (holes or slots for speakers).

VESA mount panel for Backglass monitor included.(no extra cost)

Rear panels, with round vent holes on top,with mesh to cover holesRemovable rear backbox service door with cylinder lock/key includedHoles drilled in backbox for WPC Hinges (3 holes per side) and the 2 pivot holes in the cabinet.
I can DELETE any holes/cuts free of charge.
If you want the backbox face cut for T-Molding, its a extra $30 fee, please contact before purchase.
This is a LIGHT woodworking project, you will need glue, clamps, carpenter square for nice 90's, some sandpaper, etc.There is VERY LITTLE sanding, due to thickness of wood varying, the edges of the cabinet usually need some light sanding where the joints are. (my wood arrives .696 to .733 thickness it seems, so a variance of.037 ) You will want to lightly go over the whole cab, to get super smooth before getting ready for vinyl graphics.
Shipping:Ive changed to a FLAT $130 shipping, that includes signature required.(if you are southeast, and shipping comes out a lot less, i will send you back a partial refund, sometimes its as low as $90 for the southeast.)
I stretch wrap the wood bundle, bubblewrap, cardboard wrap,re-enforce the corners, and stretch wrap again, so over 4 layers around the wood for shipping! 7 months of shipping and no damage!
ESTIMATED TIME-FRAME:I cut these AFTER payment, due to customization requests, typically have it shipped out within 4-5 days, sometimes less.
All sales are final, there are no returns, and any shipping damage must have photos of unit as it arrived, and reported within 24hrs.I'm very easy to work with,I've been selling on for 20 years!

---

---
