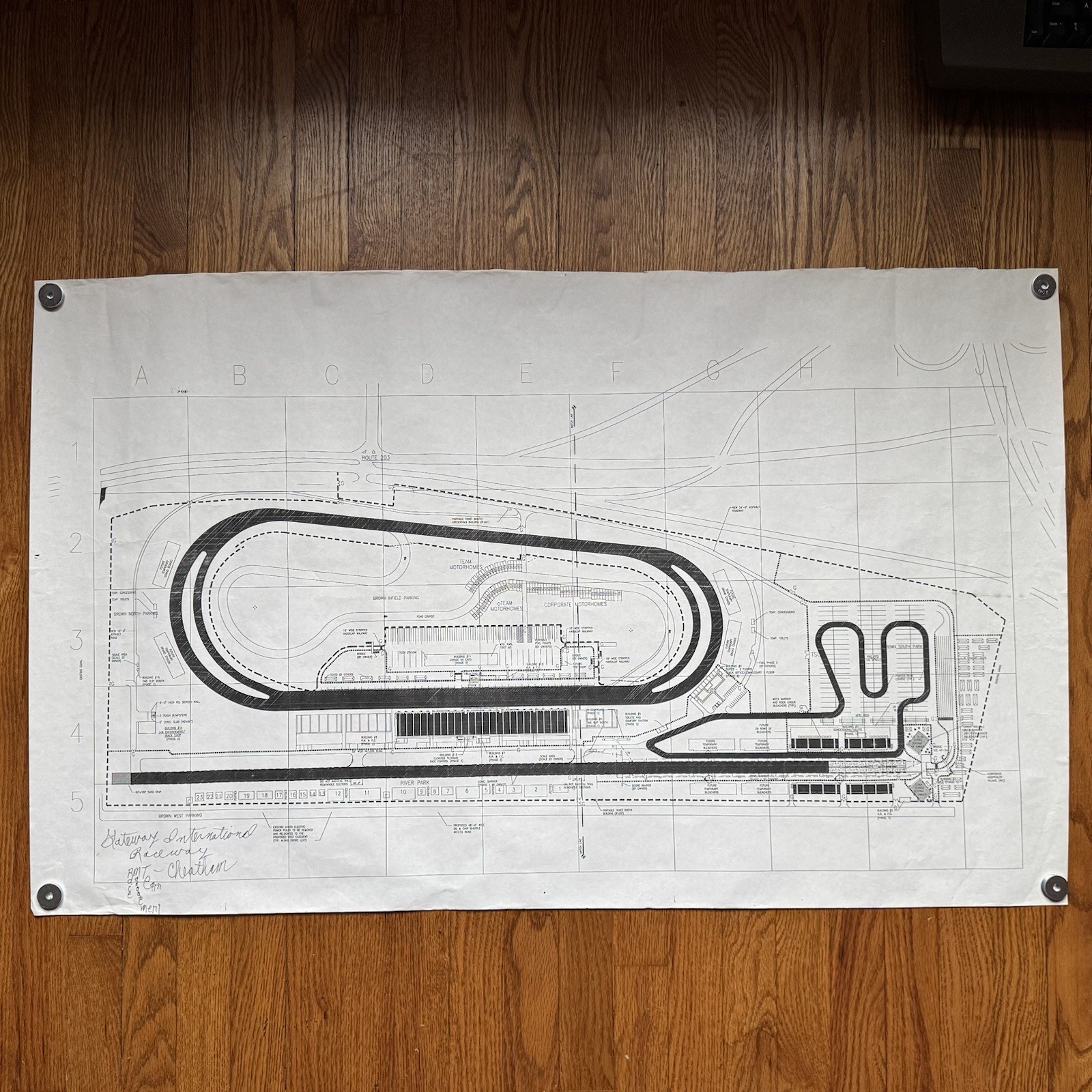

Original vintage engineering site plan for Gateway International Raceway (Madison, Illinois, just outside of St. Louis), showing the full oval track layout with detailed infield, paddock, pit areas, parking, access roads, and phased development notes. Gateway is now known as World Wide Technology Raceway.
This is a professional architectural / civil engineering drawing, not a reproduction or decorative print.
Notable details visible on the drawing include:
• Oval track and infield road course
• Pit lane and paddock structures
• Temporary and future bleacher locations
• Corporate hospitality village
• Parking, staging lanes, service roads
• Phased construction notes (Phase 1 / Phase 2)
• Handwritten identification noting Gateway International Raceway
Details:
• Subject: Gateway International Raceway site plan
• Era: Circa early–mid 1990s (pre-opening / early operational period)
• Size: 30 x 40 inches
• Medium: Original engineering blueprint / vellum-style paper
• Color: Black linework on off-white paper
• Authentic period document — not a modern reproduction
Condition:
• Good to very good vintage condition
• Light creasing, handling marks, and edge wear consistent with age
• Pin holes in corners from original drafting or wall mounting
• No major tears or losses; linework remains clear and legible
A nice piece of American motorsports and engineering history. Ships carefully rolled in a sturdy tube.
