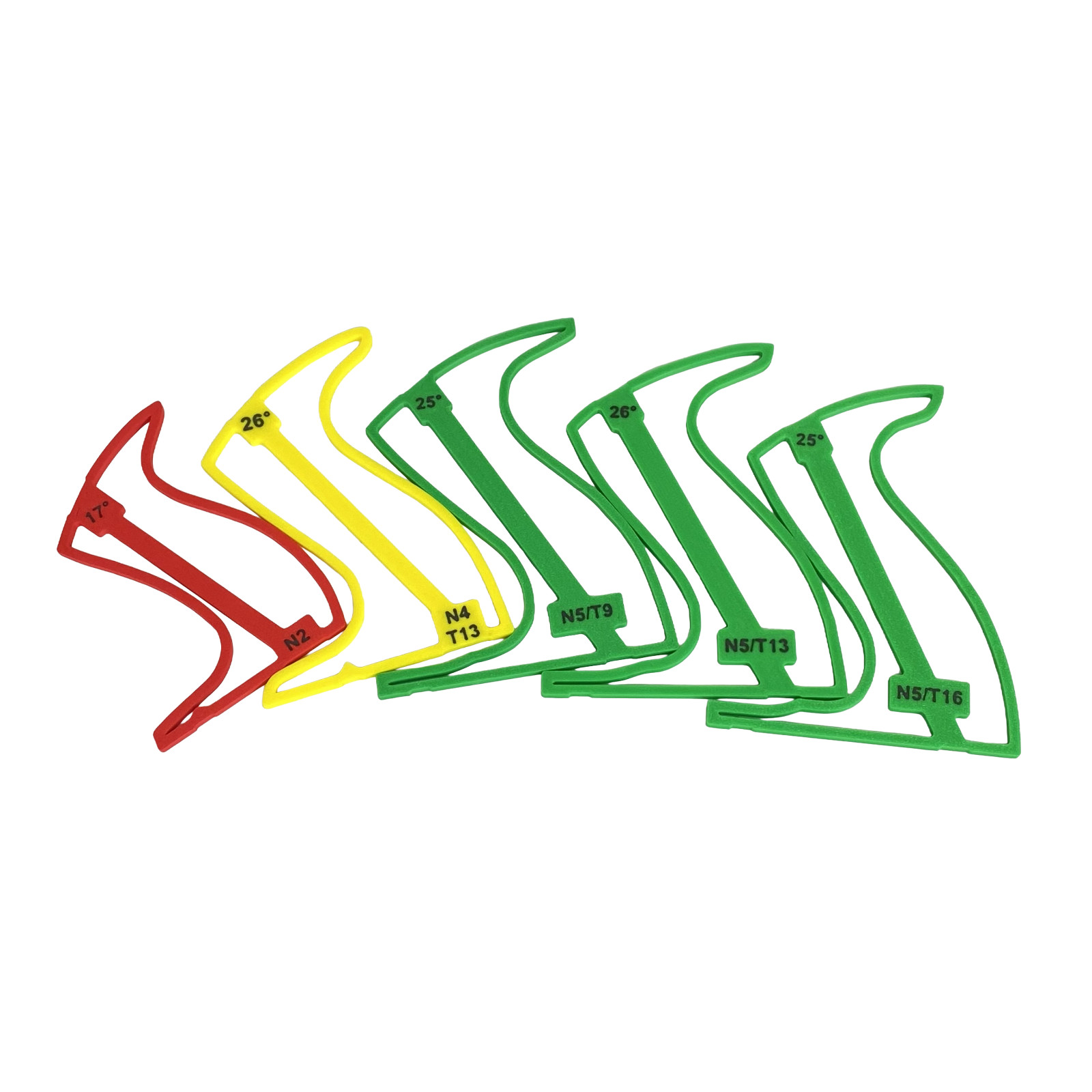

Stanley Hand Plane Tote Template 5-Piece Set for No's 2 Through No 8
These templates are 1/8in.(3mm) thick with indentations on the edge to indicate where the brass nut and threaded rod insert points and toe screw holes should be located. The template also shows the angle of the threaded rod cavity. Now please don’t get hung up on this cavity angle. A 1° variance at ~4-1/4"in.(108.0 mm) is approximately 5/64in.(2.0 mm) and 2° is approximately 9/64in.(3.6 mm). The 7/32in.(5.5mm) threaded rods can easily be persuaded to fit if you don't have angle blocks to help you drill at the perfect angle.
How do we do this?The templates in this listing were modeled from original Stanley Totes. The Totes are placed on a turntable and scanned with a high resolution 0.004in.(0.1mm) 3d scanner. The mesh files are imported into AutoCAD Fusion 360 where we reduce the resolution to 0.02in.(0.5mm) for smoothing. Once the design is finalized it is sent to an industrial 3d printer for testing. The entire process is done in-house and allows us to guarantee complete accuracy and highest quality
If you are like me you may have a collection of random tote handles in a drawer. This 5-Piece Template Set will assist you in identifying each tote and help you determine the model and vintage type in addition to helping make replacement totes by hand. If you have questions, please don't hesitate to contact me through messaging
This 5-Piece Set Includes the Following: 1 No 2 Tote Template (Sweetheart era) 1 No 4 Type 13 Tote Template (also works on No’s. 3 & 4) 1 No 5 Type 9 Tote Template (also works on No’s. 4-1/2, 5, 5-1/2, 6, 7, 8 & 10) 1 No 5 Type 13 Tote Template(also works on No’s. 4-1/2, 5, 5-1/2, 6, 7, 8 & 10) 1 No 5 Type 16 Tote Template(also works on No’s. 4-1/2, 5, 5-1/2, 6, 7, 8 & 10)
M-WTCA members will receive a 10% discount refund. Just send us a message and let us know you are an M-WTCA member. We will send your 10% discount refund promptly through . Thank you for your support of the Mid West Tool Collectors Association.
