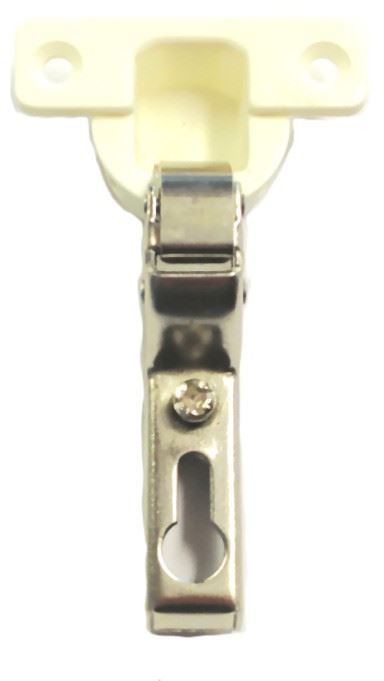

26mm Full Inset Concealed Hinge with Nylon Cup For Flush Mirrored Cabinet Doors For Sale

This mini Euro hinge (26mm) is an inset hinge with a 15 crank.
Commonly used in mirrored door medicine cabinets such as many Sears models. For replacement of medicine cabinet hinges, the mounting plate is usually not required. Therefore we do not stock this mounting plate.

• Closed Overall Dimensions: 2\" x 1 1/8\" x 2 3/8\" (51 mm x 29 mm x 60 mm)
• Open Dimensions: 3-7/16\" overall length
• Screws Centers: 1 1/2\" (38 mm)
• Depth of metal cup 10 mm

• Cup diameter is 26 mm

• Opening 95 degree

• Able to drill door (k) from 3 to 5 mm

• Self closing

• Thickness of door (t) from 16 to 26 mm

• Finish: Off-White Nylon/Nickel Plated Steel
• Uses Mounting Plate LQ-H7MSNA-UC-A

We have 85,000 of these hinges in stock, and can make you a great quantity deal. SEE TECHNICAL INFORMATION FOR CORRECT SCREWS.
