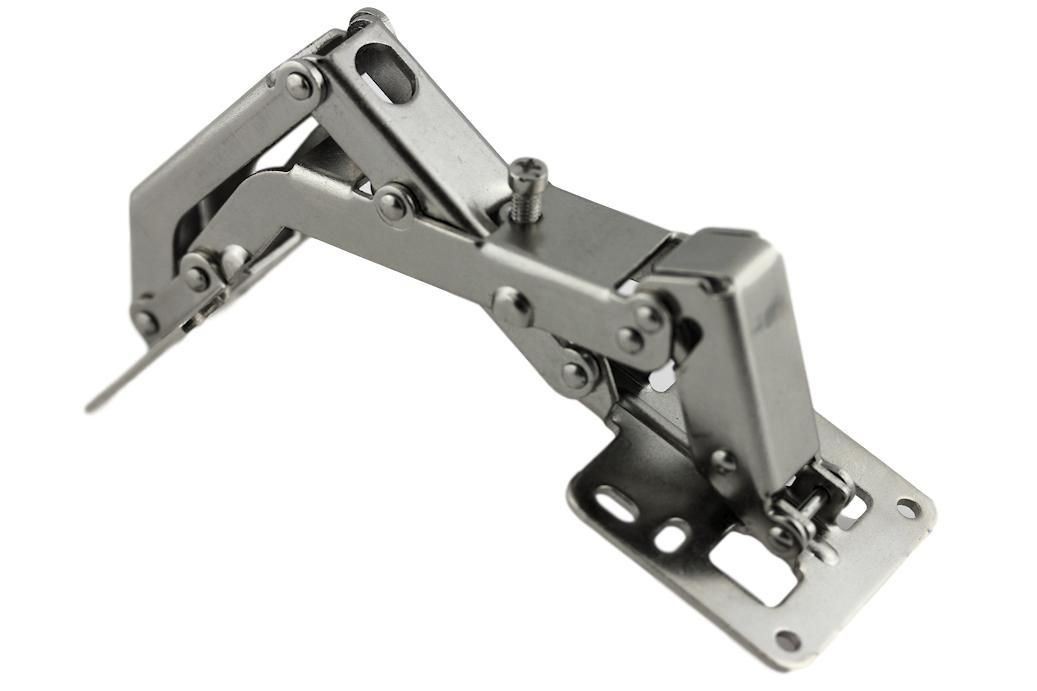

The Amazing Problem Solver Easy-ON Invisible Hinge with 170 Degree Opening
NEW and improved, Heavy Duty
No concealed hinge cup boring to do. Surface mounts and does inset, full overlay, or half-overlay. This hinge requires experienced knowledge of the workings of euro hinges to install. Invisible Spring Hinge for Inset, Full or Partial overlay doors. Euro-Hinge performance from a surface mount hinge. Up to 25/32\" overlay. 170 degree opening.
Adjustable anywhere between 170 degrees and 150 degrees with set screw.
Hardened Steel Construction. Use for doors up to 3/4\" thick. This hinge is for use on cabinets without face-frames. If you have face-frames you must use a 1 3/4\" block attached at 90 degrees to face-frame to mount this hinge.
You are receiving the Hinge Only.
- Overall Dimensions:
- Base Dimensions: 2\" x 1 7/8\" and 2\" x 5/8\")
- Finish: Unichrome (Nickel Plated)
See Drawing for Hole Spacing
Requires 4-6 #6 round head screws. D. Lawless Hardware
