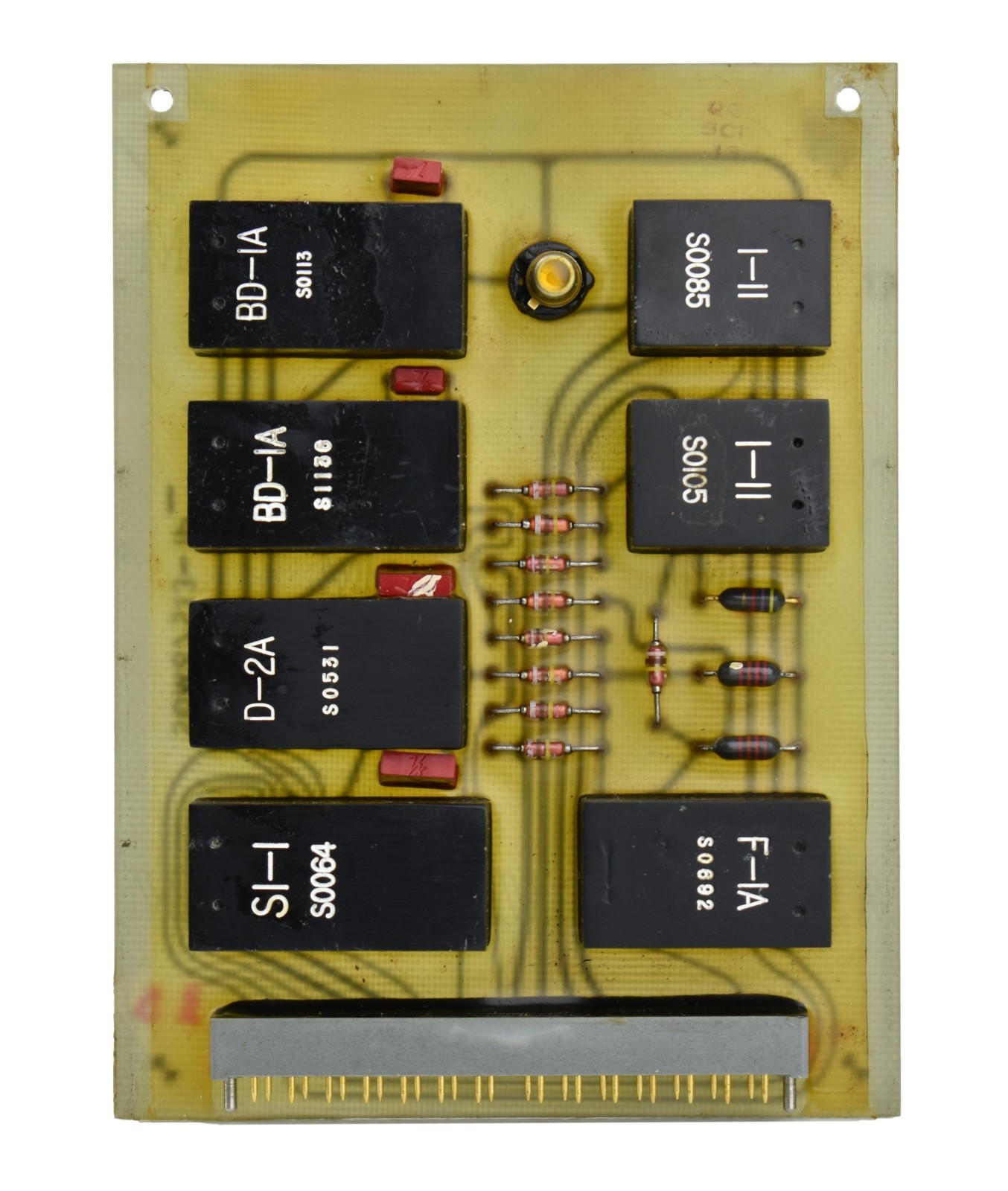

Original NASA Apollo Saturn Rocket, Instrument Unit (IU), Digital Data Acquisition System (DDAS), Computer Interface Unit (CIU), Circuit Board
Historical Context:This rare circuit board is a part of thethe highly significant Computer Interface Unit (CIU),a critical component of the Saturn IU\'sDigital Data Acquisition System (DDAS). TheInstrument Unit is the control center, functioning as the \"brain and digital nervous system\" of the Saturn Rocket.
As detailed in the NASA Apollo technical manuals (shown in the reference photos), the CIU acted as the vital communication bridge between the rocket\'s telemetry systems and the Launch Vehicle Data Adapter and Digital Computer (LVDA/LVDC). It ensured that the rocket\'s \"brain\" and its \"senses\" were perfectly synchronized.
Flight Hardware Functional Significance:As part of the CIU, this circuit board was designed to manage the flow of critical data between systems. Its primary function was to buffer and transfer selected telemetry data into the LVDA/LVDC for storage. This allowed the rocket to \"self-monitor\" its health and store vital status updates during flight, particularly after orbital insertion, the \"blackout\" periods when the vehicle was out of range of ground tracking stations.Once back in range, the CIU helped coordinate the transmission of this stored data back to Earth. Essentially, this board was designed to act as a \"data translator and memory manager,\" ensuring no piece of flight information was lost during the Apollo missions to the Moon. Hailing from CIU Flight Box Serial Number 002, this artifact represents an extremely early build of this system, manufactured by the Huntsville pioneers at Space Craft, Inc.
NASA Hardware (Flight Box) Data PlateProvenance:
Computer Interface Unit
NASA Contract Number: NAS8-11728
Serial Number: 002
Model Number: 100
Part Number: 50M67457-1Manufacturer: Space Craft, IncorporatedCircuit Board:
Part Number 50M67513-IP
(The triangular NASA certification stamp is still visible on the back side upper right hand corner and the Space Craft Inc (SCI) Quality Control (QC) red stamp on the front side upper right hand corner)
Approximate artifact dimensions: 4.25 inches x 3.25 inches.
Please Note Regarding This Sale:This listing is for ONE (1) individual circuit board only. The last 8 photos showing the DDAS, CIU flight box which this circuit board originated from, the NASA hardware data plate, and the NASA Apollo technical manual pages (diagrams and function descriptions) are provided for historical provenance and reference only. The flight box and the manuals are not included in this sale.Everything included in this sale is shown in the first 6 photos of this listing.We require that all potential buyers read our \'FAQ and Terms of Sale\' section, at the bottom of each listing, prior to purchase, offer or offer placement and inquiries.
