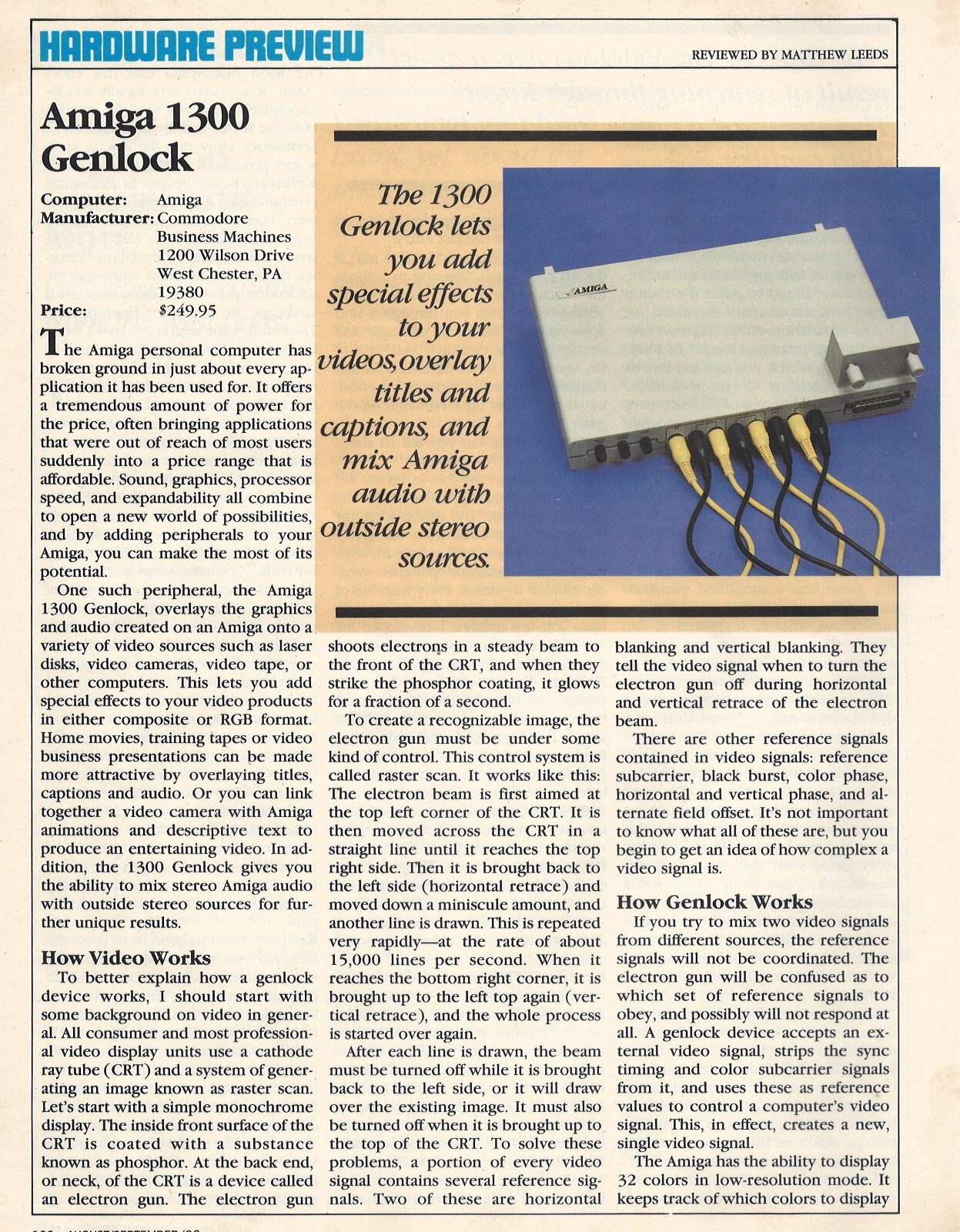

Commodore Amiga 1300 Genlock Audio/Video MixerVintage Original Print Advertising2-pages approximate dimensions each: 11" x 7.5-8"The Commodore Amiga 1300 (A1300) is an early genlock device designed specifically for the Amiga 1000, serving as the foundation for the Amiga's legacy in desktop video production. It functions as a video and audio mixer that synchronizes the computer's output with an external video source, such as a camcorder or VCR.
Key Features and Capabilities
The A1300 enables users to overlay Amiga-generated graphics and text onto live or recorded video signals. Its technical specifications and features include:

• Video Synchronization: It takes an external video signal and feeds timing signals back to the Amiga's AGNUS chip, ensuring both sources are in perfect step for seamless mixing.
• Overlays and Transparency: By treating the external video as "layer zero" and Amiga graphics as "layer one," the device uses the Amiga's "Color 0" as a transparent key. Any other colors appear directly on top of the external video.
• Hardware Adjustments: The unit includes physical controls for adjusting the hue and horizontal position of the combined signal.
• Connectivity: It features a DB23 RGB connector that slips under the A1000, two RCA connectors for composite input and output, and a DB23 passthrough for a monitor.
• Audio Mixing: It includes two stereo audio inputs and one stereo output, allowing users to mix external audio with the Amiga's native sound.

While basic compared to later units like the NewTek Video Toaster, the A1300 introduced professional-style effects to home users in the 1980s:

• Video Titling: Used extensively for adding credits, lower-third names for interviewees, and instructional text to training videos.
• Fades and Dissolves: Synchronized signals allow for clean transitions between sources without the "jump" or vertical roll typically seen when switching unsynced analog video.
• Multi-Plane Animation: Advanced setups could use genlocks to layer multiple Amigas together, creating complex foreground and background animations.
